Installation Instructions
EQ® Series
Touch-free faucet with plug-and-play installation
Specifications

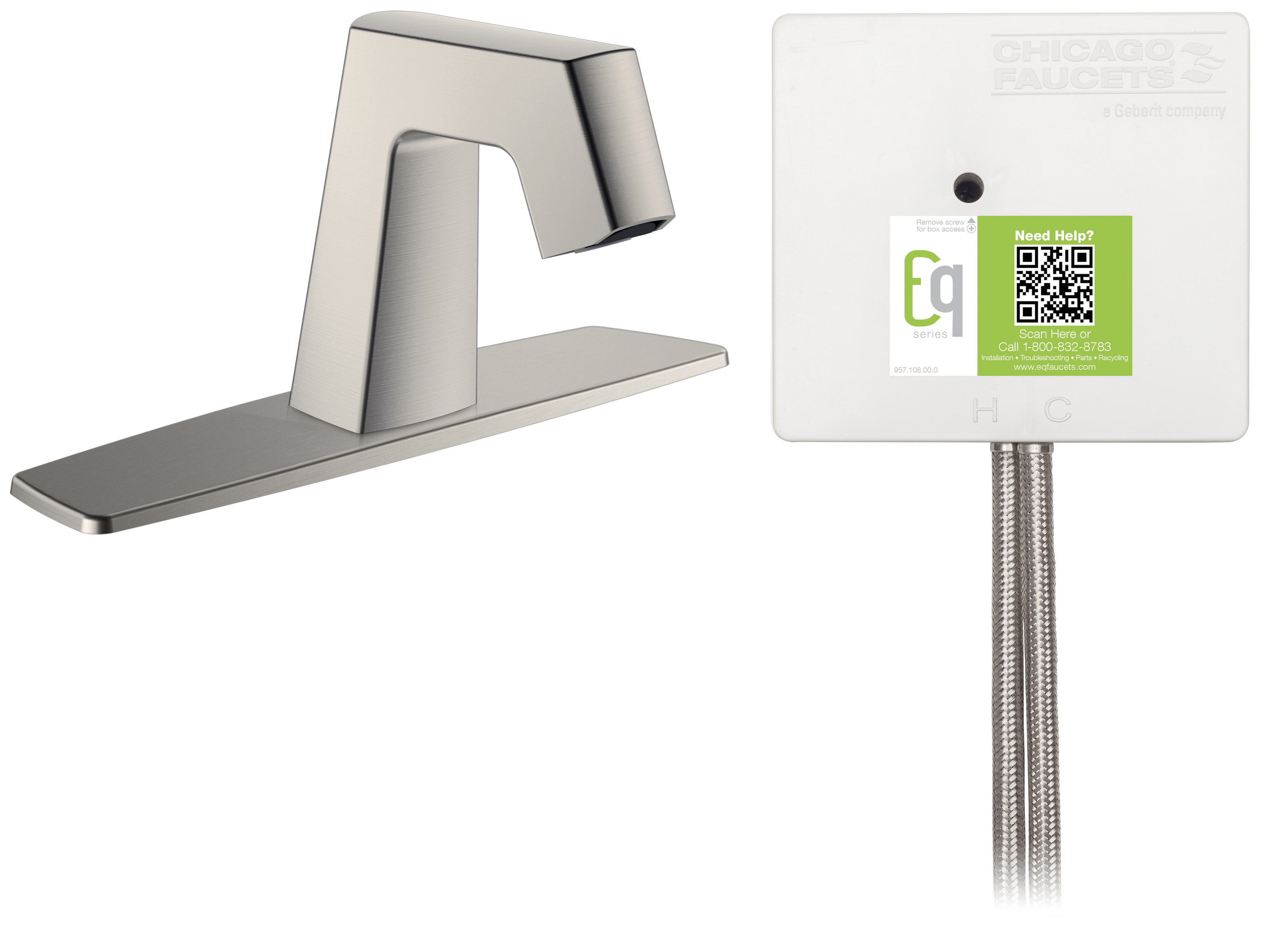

EQ Angular electronic integral spout assembly (EQ-B11A-KJKABBN)
Pressure compensating Econo-Flo™ non-aerating spray outlet 0.5 GPM (243.145.AB.1)
Concealed thermostatic mixing valve included
8" fixed centers
Requires hard-wired or plug-in transformer (order separately)
Dual supply for hot and cold water; flexible supply hoses included
PVD brushed nickel
Package Dimensions
21 × 7.38 × 3.81 in
Package Quantity
1
Availability
This item ships 10 business days from order acknowledgement
![ECAST products are manufactured with one quarter of one percent (0.25%) or less total lead content by weighted average and comply with federal, state, and local regulations mandating the lead content in plumbing fittings.](/themes/custom/cfc/images/ecast.png)
Warranty
- Electronics 3 Year
3-Year Limited Electronics and Solenoid Warranty
- Faucet Life
Lifetime Limited Faucet Warranty
- Finish 1 Year
1-Year Limited Finish Warranty
- Mechanical
5-Year Limited Mechanical Warranty
Codes / Standards
ADA ANSI/ICC A117.1
ASME A112.18.1/CSA B125.1
Complies with CALGreen requirements
Certified to ASSE 1070 by CSA
NSF/ANSI/CAN 372 Low Lead Content
NSF/ANSI/CAN 61, Section 9
WARNING: This product can expose you to lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
